Compass 2 (Full 32Bit / 192K)
Discrete  DAC+ Head amp / Preamp /
Line In
32bit / 384K Asynchronous Transfer  USB-32 Chip
It can replace the DA module either ES9018, WM8741 & PCM5102

Price :   (Exclude shipping cost)
Compass 9018 : USD499
(Built in ES9018, support up to 32bit/ 192K)
Compass 8741 : USD429 (Built in dual WM8741, support up to 32bit/ 192K)
Compass 384 : USD399 (Built in dual PCM5102, support up to 32bit/ 384K)
Suggest :
We advice purchase the default version, after several hundreds hours burn in and evaluate which side want to improve for the best personal taste , then contact us for  the modules choice and purchase .

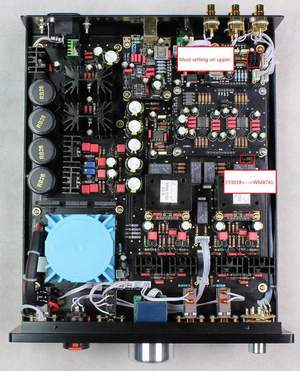

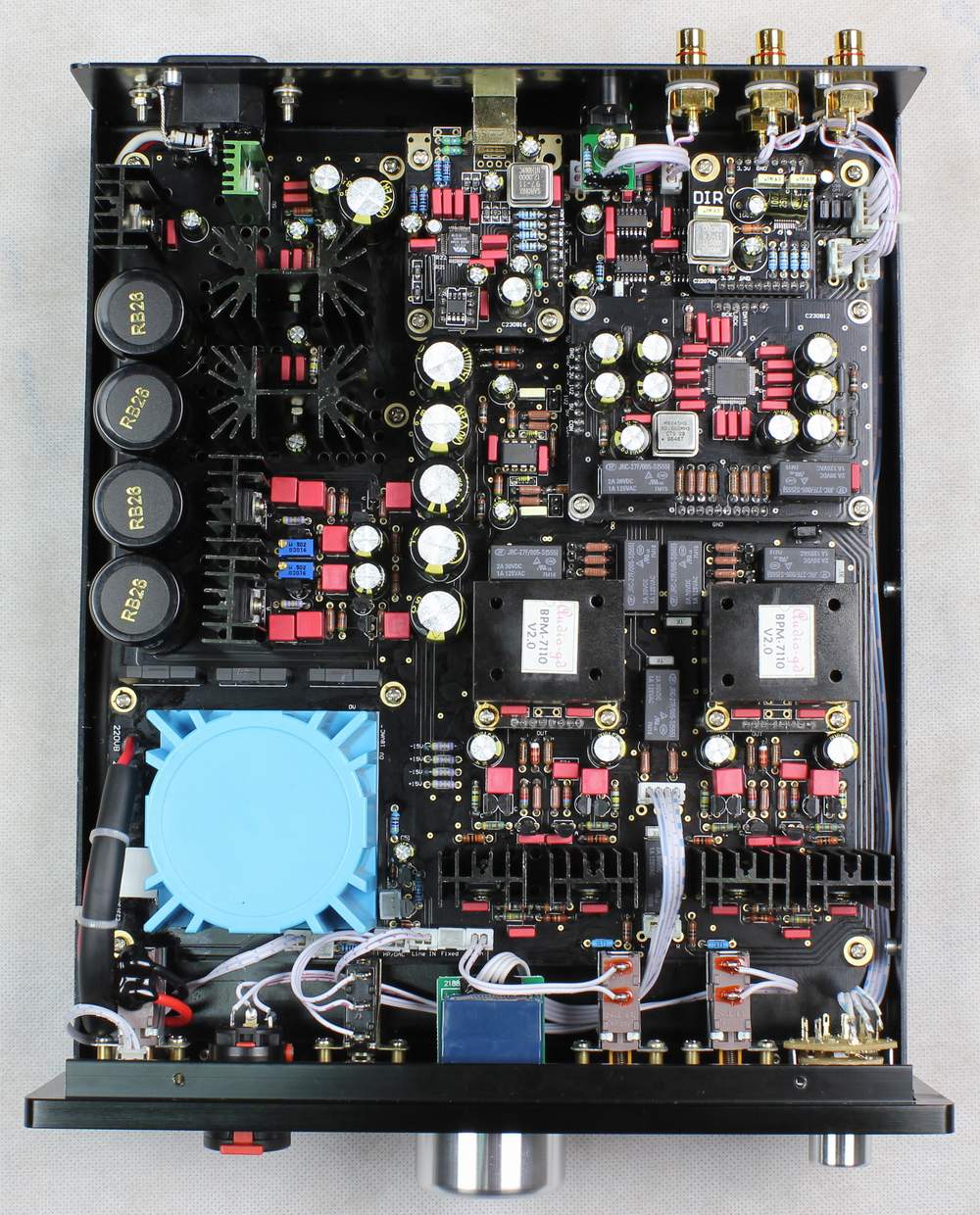

       Built in ES9018             Built in dual WM8741         Built in dual PCM5102



Summarize Use Manual Specs Technology Detail Custom Option Shipping Cost
ES9018
Default
Dual PCM5102
USD25
DIR9001
USD22.5
WM8805
Default
OPA-Earth
USD22.5
OPA-Moon
USD25
OPA-Sun
USD30


Click to read the USB-32 character and driver download                              USB-32 Introduce

What's new in the Compass 2 ?

  Compass 2 FUN Compass (old version)
USB 32bit / 384K Asynchronous Transfer 24bit / 96K Adapt Transfer 16bit / 48K Adapt Transfer
D/A ES9018 / Dual WM8741/ Dual PCM5102*2 AD1852 AD1852
Caps WIMA EVOX EVOX
Resistors DALE DALE DALE
Amps design ACSS ACSS Classis design
DAC design ACSS feed to amp direct Through OPA feed to amp Through OPA feed to amp
Tansformer 45W(  output continuously 24 hours :35W) 50W (output continuously 24 hours :30W) 50W (output continuously 24 hours :30W)


1, The Compass 2  had infinite upgrade possible in future , the USB , DIR, DA, ACSS modules can exchange without solder . ( All analog signal transfer in current model for avoid the sound degrade by the modules sockets . Digital signal have the impedance match for avoid sound degrade by the modules sockets . )
    DA modules :  ES9018 sound characteristic is very neutral and a ton of details without harsh, bass is speed and control .
                           Dual PCM5102 sound characteristic isneutral and a ton of details , bass is strong and rich .
                           Dual WM8741 sound characteristic is slight on warm side and smooth ,  bass is deep and rich .
    DIR modules : Users  can choice the SPDIF signal feed to either ES9018 direct and through DIR module with 3 jumpers setting , which is simply for users choice different sound flavors . Other DA modules must setting with DIR active model .
                          WM8805 sound slight warmer , support up to 192KHz .
                          DIR9001 sound quite neutral, support up to 96KHz .
    OPAs : Users can exchange the OPA chips and discrete OPA modules for Line in without solder ( The USB, coaxial and optical inputs is applied the built in DAC, it transfer signal to the built in amp direct without any OPAs , so replace the OPA have not effect the sound on USB, coaxial and optical inputs  ).
                          OPA-SUN sound dynamic ,detail and speed .
                          OPA-EARTH sound is neutral but slight warmer .
                          OPA-MOON sound is a bit warm and smooth .
2, The Compass 2 have Line in,  users can use it as a dedicate head amp / preamp .
3, The Compass 2 have Line out , users can use it as variable level as DAC with preamp combo or fixed output level as dedicated DAC .

Summarize:
Fully  discrete analog stages without any OPA and couple caps in the signal channels. ( Built in DAC and head amp)
Non- feedback ACSS analog output stage .

Total of 6 groups dedicated power circuits  are used to purify the power supply.
45W high performance transformer and more than 25000 UF audio grade caps .
High-End grade parts built in , ALPS 27 volume pot , DALE resistors, WIMA caps and Toshiba transistors , gold plate pure copper RCA sockets ect.
4 channels  input :
  Coaxial /  Optical / USB / Analog Line IN
DAC / Preamp output :
  RCA  (User can setting with either variable level as preamp or fixed output level as dedicated DAC )
Headphone output : 6.3MM SE
USB Audio Class 2 High-speed Input from Windows / MAC / Linux
Supports High / full speed Asynchronous Transfer Mode up to 384K / 32Bit ability .
ES9018ES9018 input direct model ,USB model :Resolutions support 16 / 24 / 32 Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
PCM5102 USB model :Resolutions support 16 / 24 / 32 Bit , 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz,352.8kHz and 384kHz
WM8741 USB model :Resolutions support 16 / 24 / 32 Bit , 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
