C-39 MK3

Fully Balanced discrete Preamp / Headphone amp

Price: USD960






The ACSS sockets have upgrade to new types.
Summarize Use Manual Specs Technology Detail Custom Option Shipping Cost


 How to choose the settings in C-39MK3 :
       With the C39MK3, the user has a choice of 70 steps and 99 steps of volume control, and you can also choose whether to have volume memory.
1. Choose 70/99 steps volume control:
Step A: Push in the "Debug" switch.
Step B: The display shows as pictures below.
Step C: Turn the volume knob; choose between 70 or 99 on right.
Step D: Push out the "Debug" switch.

           70 step volume control                      99 step volume control

2. Choose volume memory:
Step A: Push in the "Debug" switch.
Step B: Turn the selector knob; the display shows as pictures below.
Step C: Turn the volume knob; choose display "ON" or "OF" on left.
Step D: Push out the "Debug" switch.

         Volume memory active.                          Volume memory off.


¡@

Improvement may result in changes in specifications and
design without notice.

XLR/RCA input

S/N:>118db
Max output:24V
Frequency brand :20-20KHz




ACSS input

S/N:>123db
Max output:24V
Frequency brand :20-20KHz

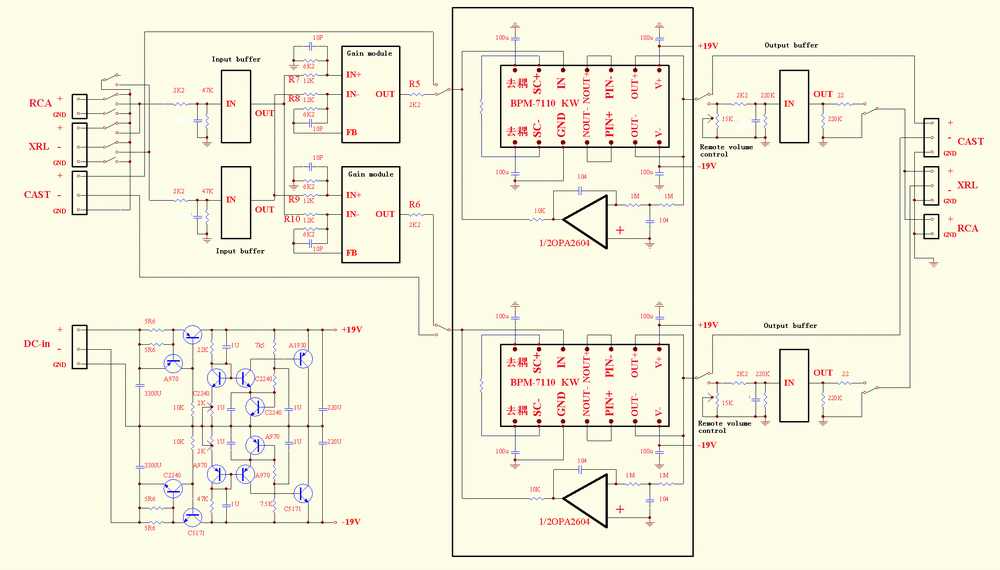

C-39SE(Not C-39MK3)(Only the signal parts, without power supply parts)


¡@
