Reference-5.32 USB applied USB-32
Dedicated Discrete Fully Balanced DAC

DSP-1 Processor
Built in 4 Pieces  PCM1704UK Supports up to 192KHz
32bit / 384K Asynchronous Transfer  USB-32 Chip


Summarize Use Manual Specs Technology Detail Custom Option Shipping Cost

Reference 5.32 frequency band response

8X oversampling model:
- 0.2DB at 20KHz
4X oversampling model:
- 0.4DB at 20KHz

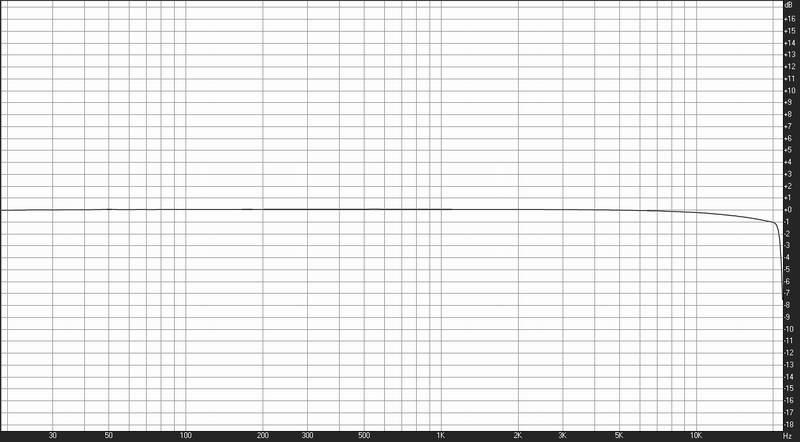

2X oversampling
- 1 DB at 20KHz

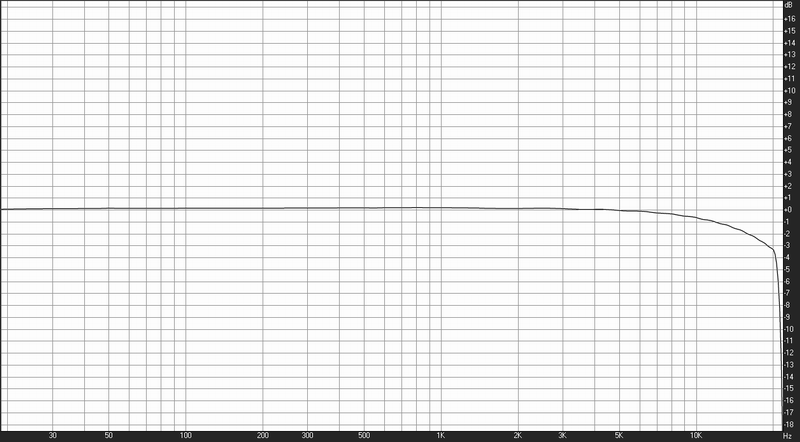

NOS model:
- 3.3DB at 20KHz

Specifications might subject to change without prior notice for product improvement.
S/N Ratio
>118DB  (XLR output)

Output impedance
10 ohm

Output Level
2.5V (RCA)
5V (XLR)
1.2+1.2MA (ACSS)
Input Sensitivity
0.5 Vp-p(75 Ohms, Coaxial)
19 dBm (Optical)
USB1.1 ,USB2.0 (Full Speed, High Speed, Class2)
Frequency Response
20Hz - 20KHz (< - 0.2DB)

Support Operate Systems (USB)

44.1kHz to 192kHz

Support Sampling
 USB model : 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
 Coaxial model: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Optical model: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Power Requirement
 Version 1: 100-120V  AC 50/60 Hz
Version 2:  220-240V  AC 50/60 Hz
Power Consumption
Package Weight
Approximately 5KG

W240 X L360 X H80 (MM, Fully aluminium )
AC power cord            X1
USB cable                X1
