NFB-16 is a portable headphone amp built in DAC. At two years ago
some customers advice me design a portable DAC + amp . But consider
the amp design can't support low to 5V power supply, and I don't
want design by a chip as the amp, so I can't design at that time.
I always like to try to design this amp as
a target , after a lot practices, at last year I design the
wide power supply ACSS amp, it can working well at +4 to +36V DC.
Built by discrete analog stages without any OPA in the signal channels.

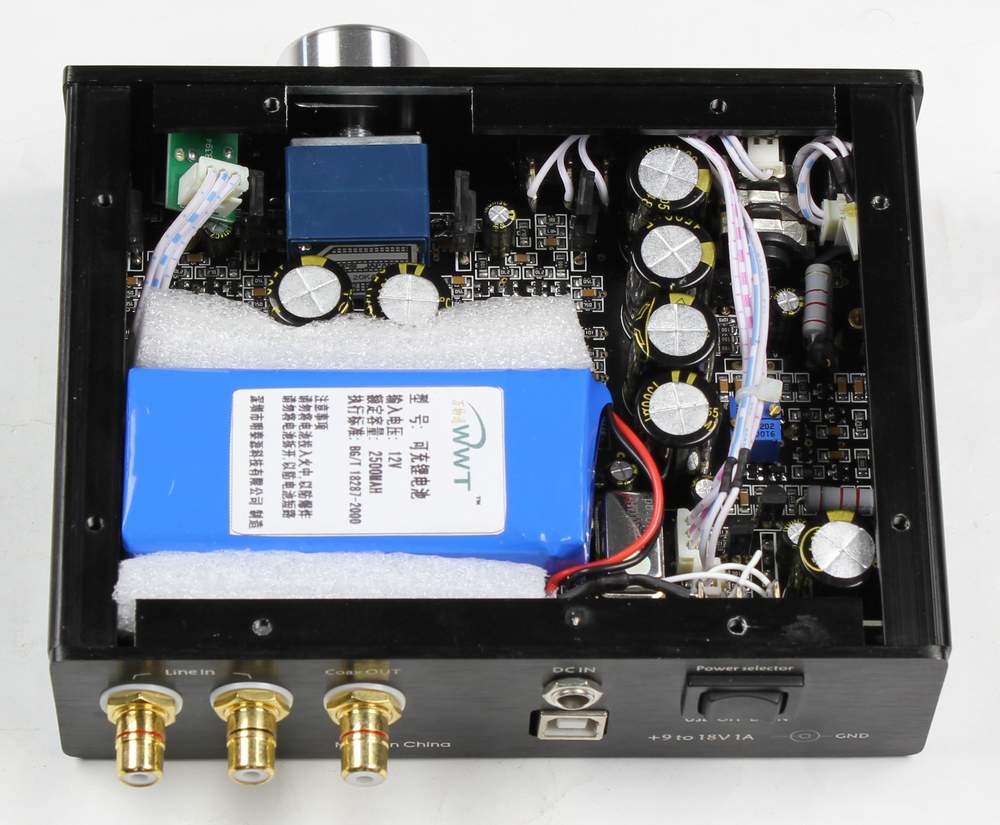

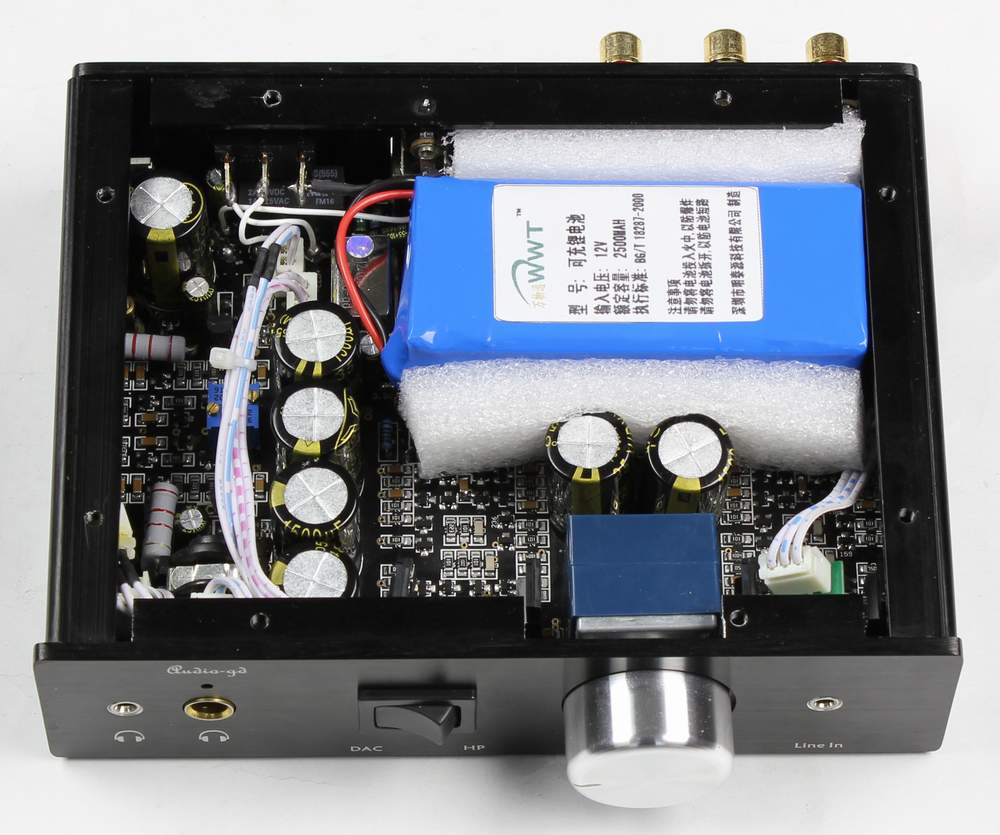

Built in 12.6V / 2500MA battery power supply .
The battery working time ( full charge, Test at 25 Celsius
room temperature , only for FYI ):
: 5-6 hours (continuous working ) .
5-10 hours ( intermittent working)
: 20-25 hours (continuous working).
20-35 hours ( intermittent working)
Non- feedback ACSS analog output stage, wide range power supply,
from +5V (USB power supply) to +12.6V (internal battery power
More than 5,000uf audio
grade NOVER capacitors are used to ensure ample and smooth power

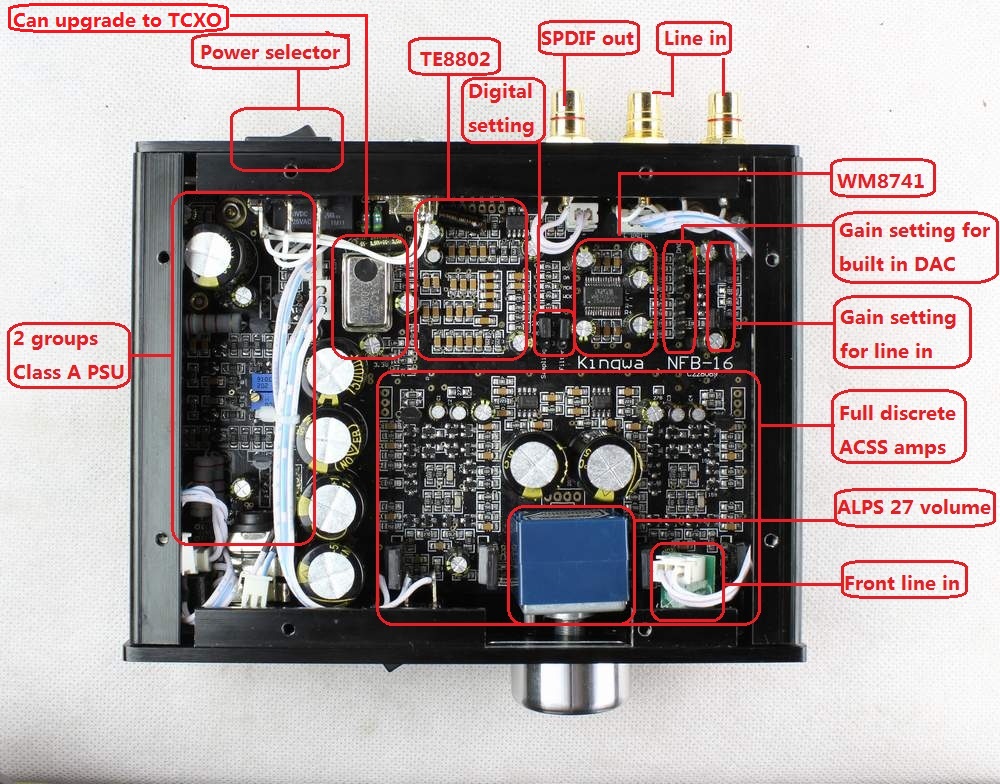

Total of 2 groups class A PSU are used to purify the power supply.
Applies a custom order ALPS 27 volume pot for reducing channel
imbalance and improving on sound quality.
2 groups input :

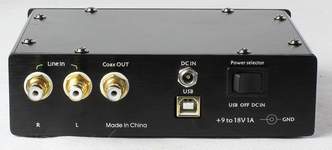

USB / Line IN (both RCA and 3.5MM )

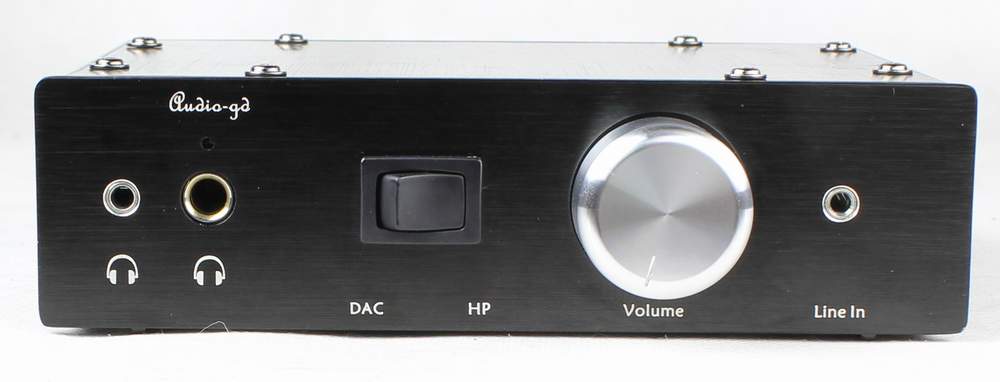

Headphone output :
6.3MM and 3.5MM

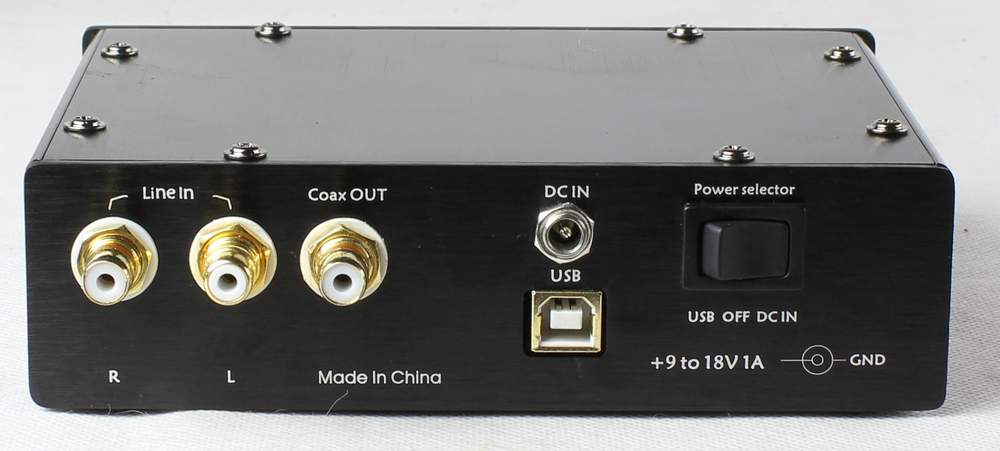

Coaxial output :
RCA SPDIF (0.5V P-P at 75 ohm load)
USB Audio Class 2
High-speed Input from PC/MAC
Supports full speed Asynchronous Transfer Mode
Resolutions support 16 / 24-Bit with sampling rate support 44.1kHz,
48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Supports 2X , 4X and 8X oversampling customers setting
NFB-16 applied the
new wide range power supply ACSS amp design, its sound
characteristics have been design neutral and dynamic .
