Discrete  DAC+ Headphone amplifier / Preamplifier
Built in 2 Pieces Hi-end grade WM8741 Chips

NFB-12.1 Price:  USD215

Summarize Use Manual Specs Technology Detail Custom Option Shipping Cost

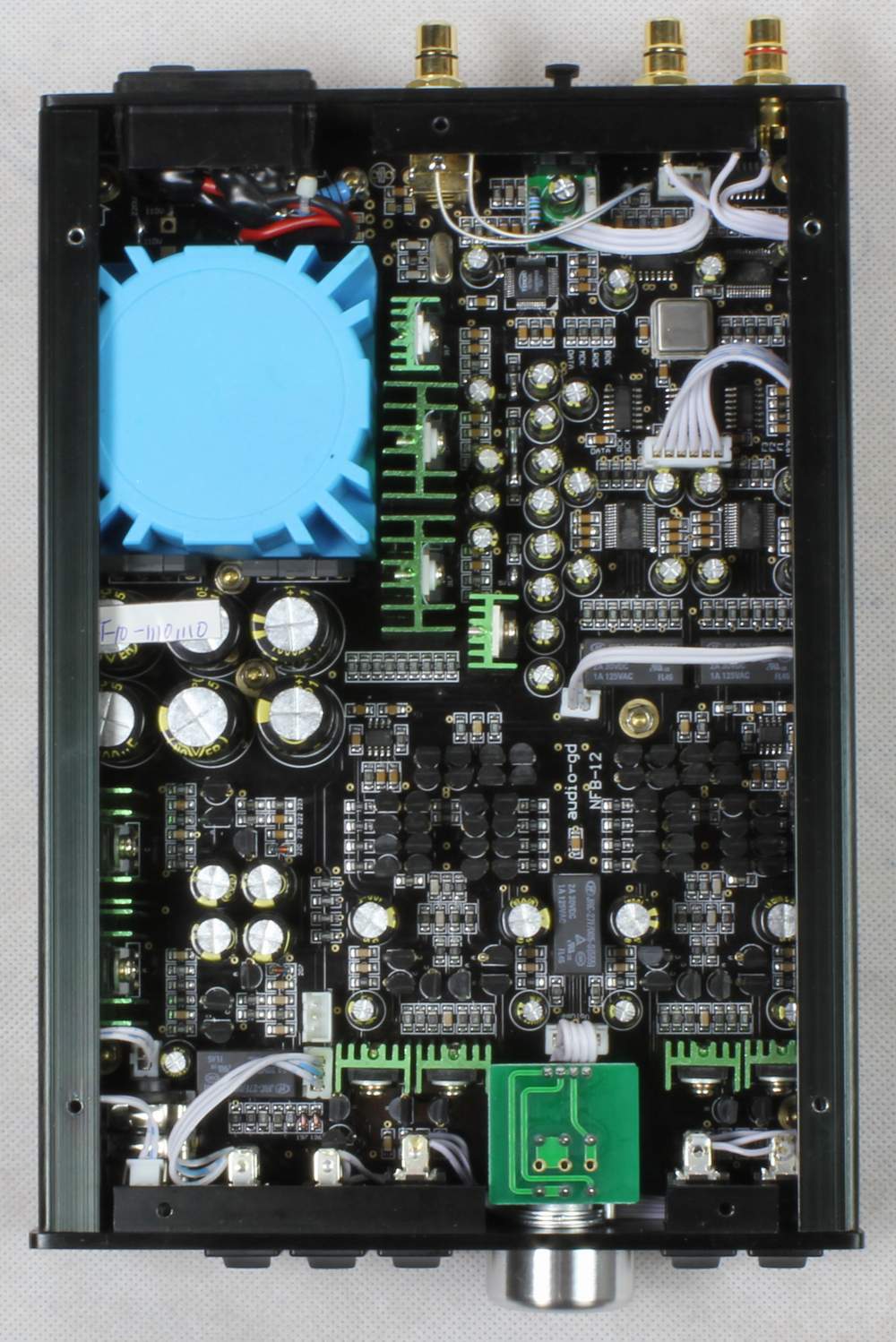

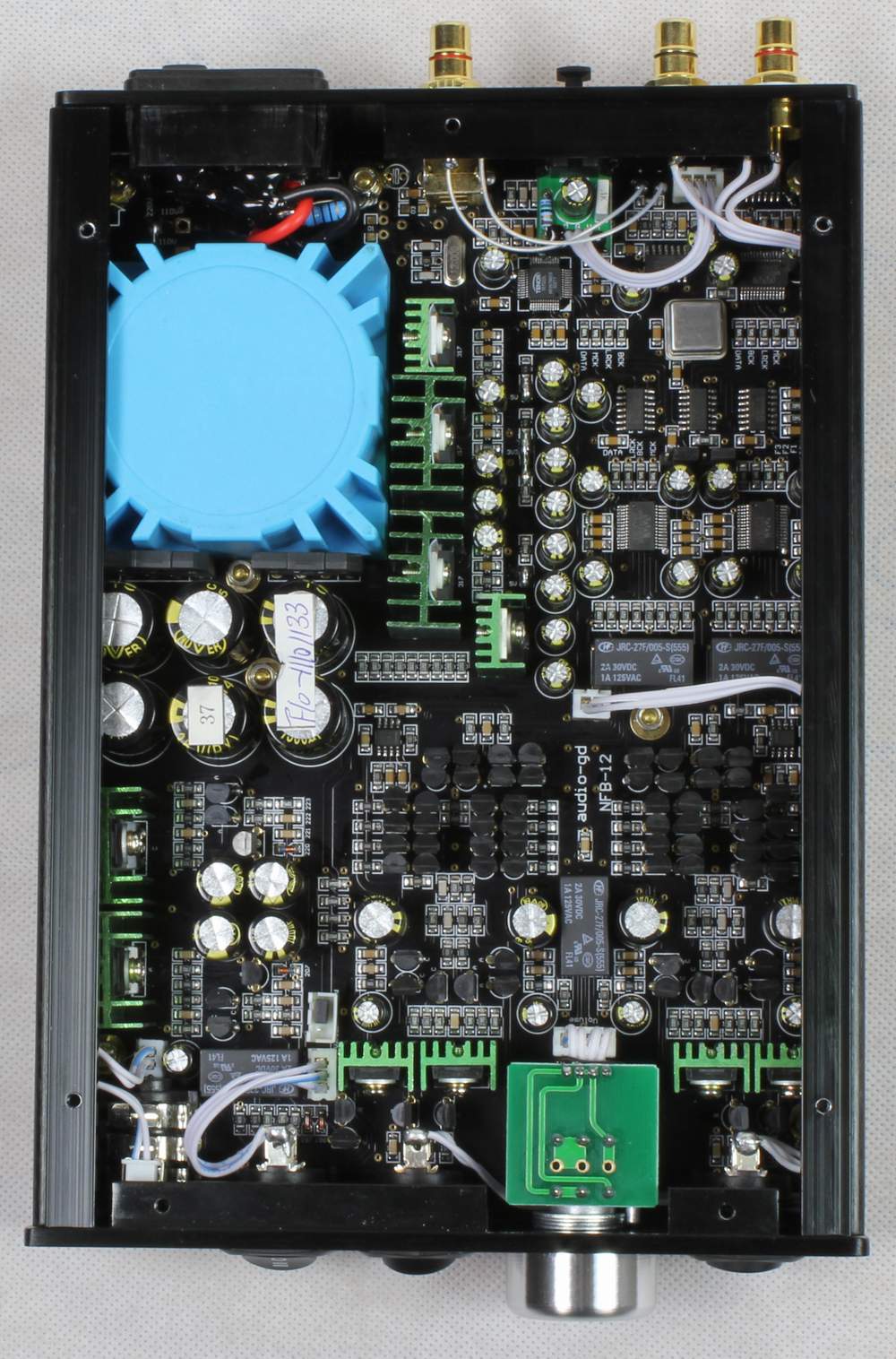

Fully balanced design built by discrete analog stages without any OPA and couple caps in the signal channels.
Non- feedback ACSS analog output stage .
Uses 20W high performance transformers . More than 10,000uf audio grade NOVER capacitors are used to ensure ample and smooth power feed.
Total of 6 PSU groups are used to purify the power supply.

Applies a custom order ALPS 27 volume pot for reducing channel imbalance and improving on sound quality.
3 channels digital input :
  coaxial /  Optical / USB

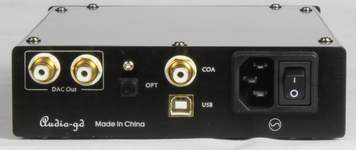

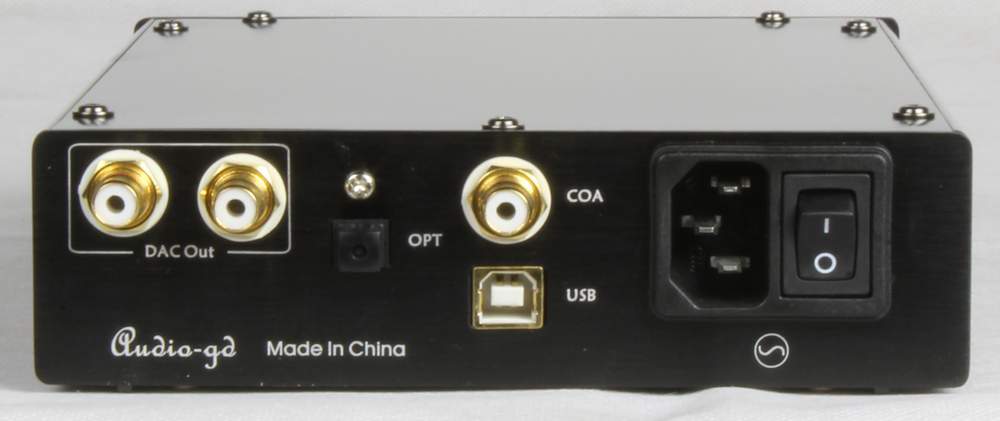

DAC output :
  RCA  (User can setting with either variable and fixed output level )
Headphone output :  6.3MM SE
Resolutions support 16 / 24-Bit with sampling rate support 44.1kHz, 48kHz,  96kHz.
Supports up to 24Bit/96 KHz (USB model) and 24Bit/192KHz ( coaxial  inputs )
Supports 2X , 4X and 8X oversampling customers setting

Sound Characteristics:
"Neutral but smoothness sounding ,it doesn't sound skeletal or digital (or metallic). There's meat aplenty on them bones . It's a sigma-delta DAC chip implementation without the dryness, neutrality without the emotional disconnection" - John Darko
Feedback :

What are the differences between these popular DAC chips:
@ Dual WM8741 ES9018 AD1955 AD1852 WM8740
SNR 128 DB (Mono) 120 DB 120DB 114DB 117DB
DYNAMIC RANGE 128 DB (Mono) 129 DB 120DB 114DB 117DB
