Master 7(2016)

Dedicated Discrete Fully Balanced DAC

Fully redesigned DSP V7 software
Built in 8 Pieces  PCM1704UK
Supports up to 384KHz at USB & IIS
32bit / 384K Asynchronous Transfer  Amanero combo384
OCC wires & TCXO applied




Summarize Use Manual Specs Technology Detail Custom Option Shipping Cost

Click to review : RJ45 and HDMI pin definitions


The display auto dark :  Push into the jumper is auto dark .Please operate the button while the unit power off .

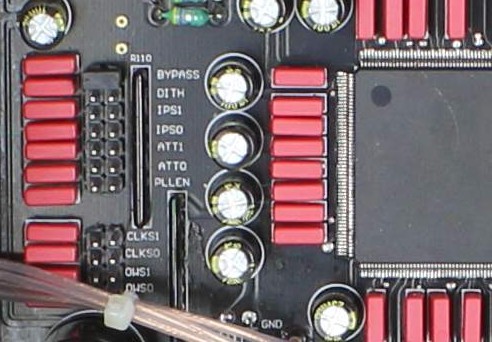

DSP-1 Jumpers setting

Jumpers Number

Setting

Functions describing

PLLEN

Bypass (OFF)

Active (ON)

PLL setting

DITH

Inactive (OFF)

Active (ON)

Data Dithering



 8X Oversampling

4X Oversampling

2X Oversampling

NOS

The sound will become smoother and warmer while setting lower oversampling.

IPS0

 (OFF)

 (ON)

 (OFF)

 (ON)

IPS1

 (OFF)

 (OFF)

 (ON)

 (ON)

ATT0









Reserved

ATT1










Note:     ON mean the jumper push on.
              OFF mean the jumper pull off.
             We are recommend power off the unit while change the jumpers for avoid the chip damage by the static electric .
