Master 2A (100W Pure Class A Design)

150W at 8 ohm/ 600W at 2 ohm
Real Balanced ACSS Non Negative Feedback Power Amp
Supports XLR and ACSS inputs
Applied "Linear Fidelity" Technology
Soft Start Power Design
80 pcs output transistors




@
Summarize Use Manual Specs Custom Option Shipping Cost

Improvement may result in changes in specifications and
design without notice.

S/N Ratio

>110DB

Gain

+26 DB

Output

>150W @ 8ohm
>300W @ 4ohm

>600W @ 2ohm


Input sensitivety
@

2.2V RMS @ XLR
2mA RMS @ ACSS


Input impedance
@

94K ohm @ XLR
<10 ohm @ ACSS

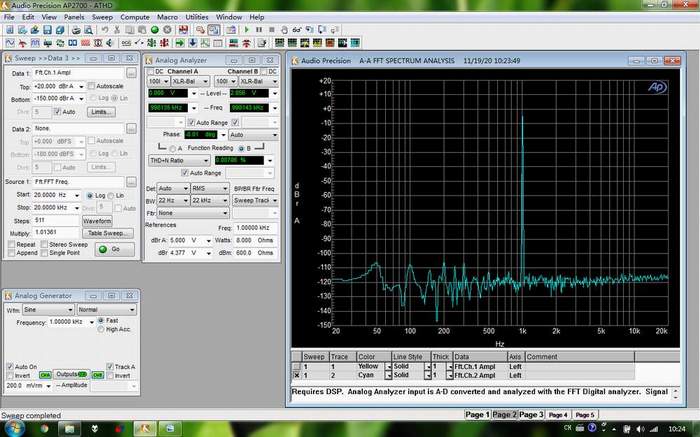

THD+Noise

THD+N at 8 ohm 10W

THD+N at 8 ohm 25W

@

THD+N at 8 ohm 50W

Frequency Breadth (ACSS input)


Channels cross
@
Mono

Channels imbalance
@
< 0.01DB

Power Requirement

1 Version  100-120V  AC 50/60 Hz
2 Version  220-240V  AC 50/60 Hz

 Power Consumption

600W static @230V

Transformer Power

1800W (4 transformers)

Package Weight

Approximately 72KG


Dimensions
@
W(340) H(260) D(450).  (Each channels)  (MM, Fully aluminium )

Accessories

Power cord            X2
 (We are strong recommend user search a good and strong power cable for connect the unit)

@


@
