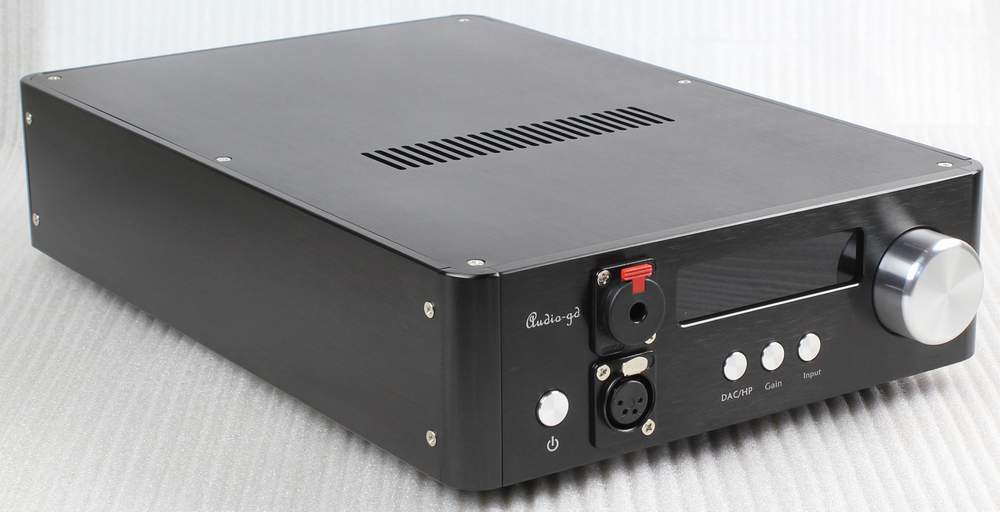

NFB-28 (Version 2014 )(DSD / DXD )(Since 1st May 2014)
Discrete  DAC+ Headphone amplifier / Preamplifier
With XLR / RCA analog inputs

DSD , DXD support from USB
32bit / 384K Sabre ES9018
32bit / 384K Asynchronous Transfer  USB-32 Chip





Summarize Use Manual Specs Custom Option Shipping Cost


Specifications might subject to change without prior notice for product improvement.

S/N Ratio


>120DB



THD

<0.0005% (0DBV output level )


Output impedance


2 ohm


Output Level


 Headphone output : 19V RMS (balanced , max)
Preamp Variable output (balanced) : 10V RMS (max)
Preamp Variable output (RCA) : 5V RMS (max)
ACSS: 2MA+2MA

Headphone amp output power level
(Only for  headphone.)
Balanced mode

8000MW /  40 ohm
 3500MW  /  100 ohm
1200MW / 300 ohm
600MW  /  600 ohm

Digital Input Sensitivity

0.5 Vp-p(75 Ohms, Coaxial)
19 dBm (Optical)

Analog Input Sensitivity
0.7V RMS to 5V RMS (RCA)
0.7V RMS to 10V RMS (XLR)


Gain

Low gain mode : 0 DB
High gain mode : +12DB

Frequency Response (DAC +AMP)

20Hz - 20KHz (<-0.05DB)


Support Operate Systems (USB)


Windows, Mac

Support Sampling

 USB model: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz , 192kHz, 352.8kHz,384kHz
 Coaxial model: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz ,192kHz
Optical model: 44.1kHz, 48kHz, 88.2kHz, 96kHz

Power Requirement

Version 1: 100-120V  AC 50/60 Hz
Version 2:  220-240V  AC 50/60 Hz

Power Consumption

25W

Package Weight

Approximately 5KG


Dimensions


Approximately W240 X L360 X H80 (MM, Fully aluminium )

Accessories

AC power cord            X1
USB cable                X1
Mini remote controller  X1
