Master 9
(2017 version,Since 1st. May.2017)

Real Balanced ACSS design
Pure Class A  (9W @ 40 ohm)
Preamp & Headphone amp
Super Exponential Volume Characteristic
OCC and hi-end parts applied , no upgrade option necessary




Summarize Use Manual Specs Shipping Cost

Improvement may result in changes in specifications and
design without notice.

¡@

Master 9


S/N Ratio
¡@
>130DB (Input short, XLR mode)

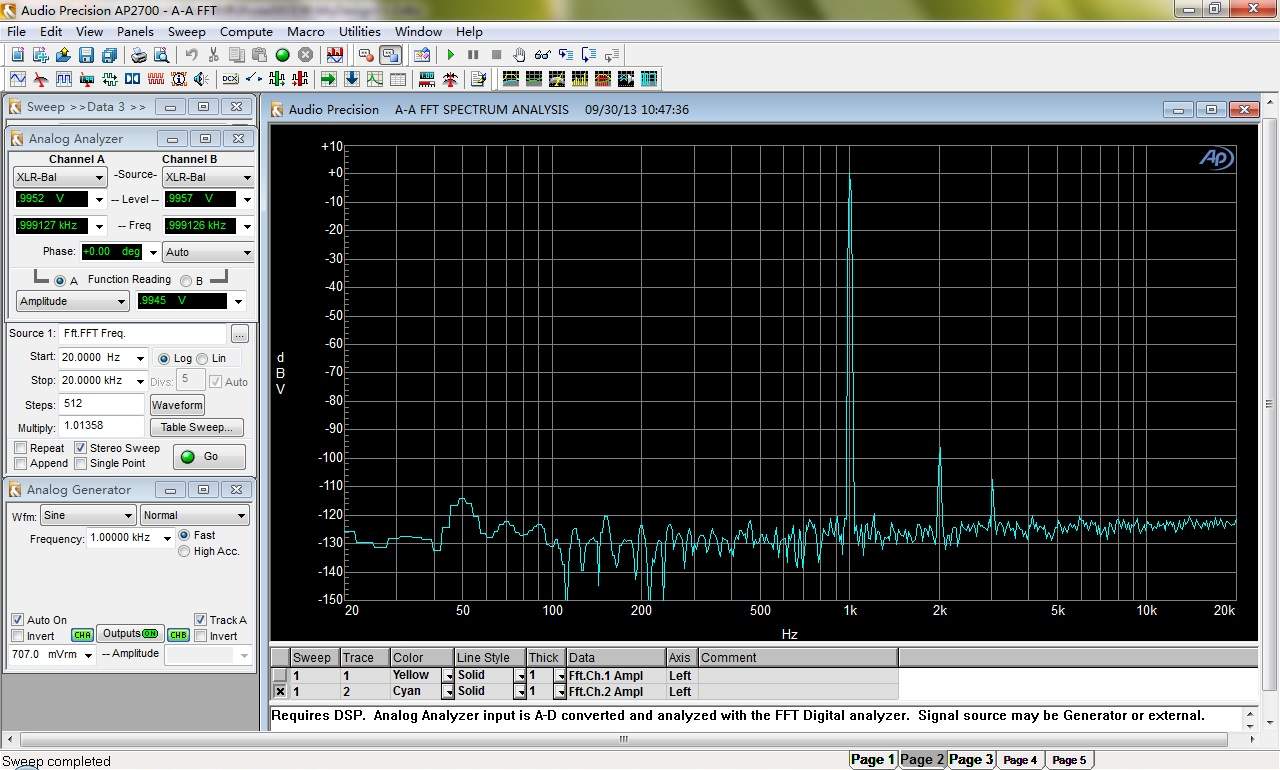

THD
¡@
<0.002 %


Gain
¡@

Low Gain : +14 DB  (XLR)
High Gain : +20DB  (XLR)


Volume characteristic
¡@

100 steps Super Exponential Volume Characteristic


Headphone amp Output Power
 (Balanced , Pure Class A )
¡@

40 ohm:   9000MW
100 ohm: 3800MW
300 ohm: 1250MW
600 ohm:   630MW

¡@
Headphone amp Output Power
 (Single-ended , Pure Class A )

40 ohm:   2500MW
100 ohm: 1050MW
300 ohm: 350MW
600 ohm:   175MW
¡@

 Preamp Output Level (Max)

10V @ RCA
 20V @ XLR
4.8MA @ ACSS

Output impedance

1 ohm


Input impedance
¡@

90K ohm @ XLR
<10 ohm @ ACSS

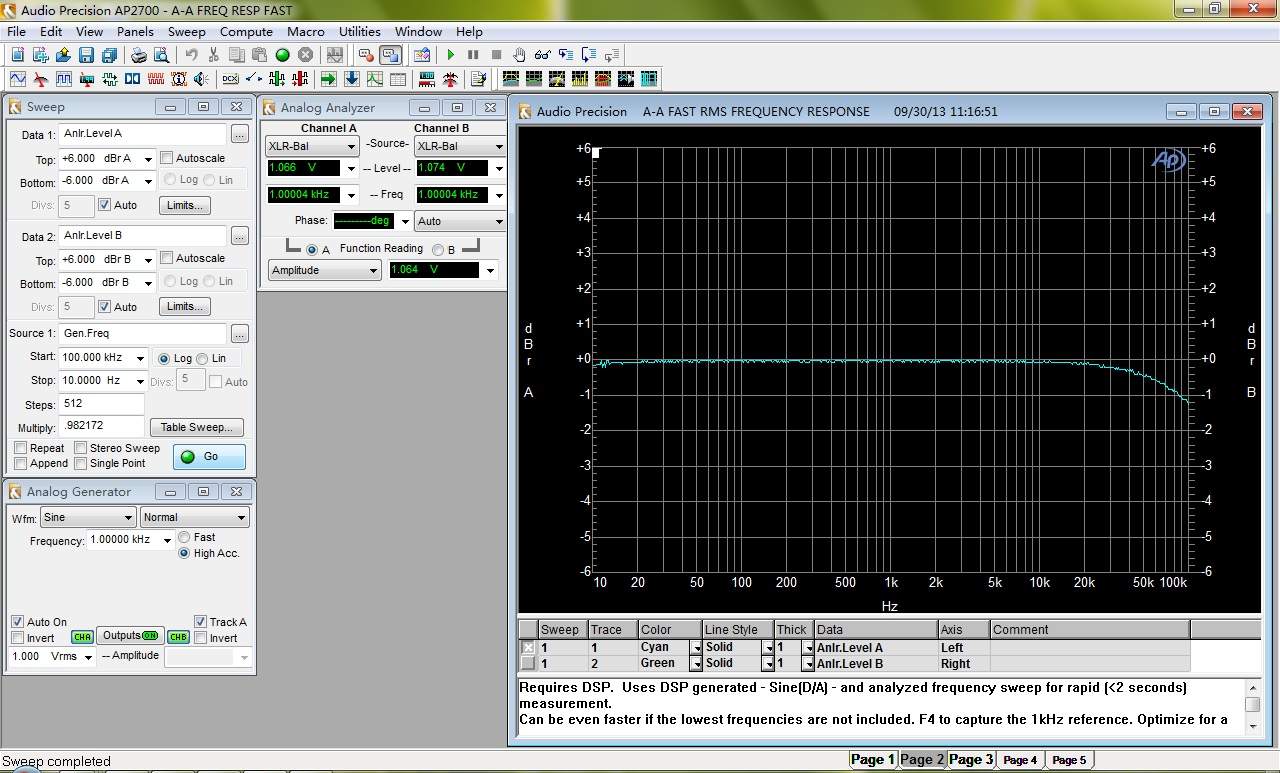

Frequency Breadth (XLR input)

20Hz - 20KHz ( +/- 0DB )
1Hz - 220K (+0DB, -3DB)




Channels cross
¡@
> 130DB

Channels imbalance
¡@
< 0.05DB

Power Requirement

1 Version  100-120V  AC 50/60 Hz
2 Version  220-240V  AC 50/60 Hz

Power Consumption

55W @240V or 120V

Transformer Power

135W (3 transformers)

Package Weight

Approximately 16KG


Dimensions
¡@
W430 X L430 X H93 (MM, Fully aluminium )

Accessories

Power cord  X1

¡@


¡@
