HE-1 LE
(HE-1 Linear Power Edition)

痷タキ颗CAST电瑈传输玡级竟






阀瓃 ㄏノま 规

Improvement may result in changes in specifications and
design without notice.

S/N Ratio

>130DB

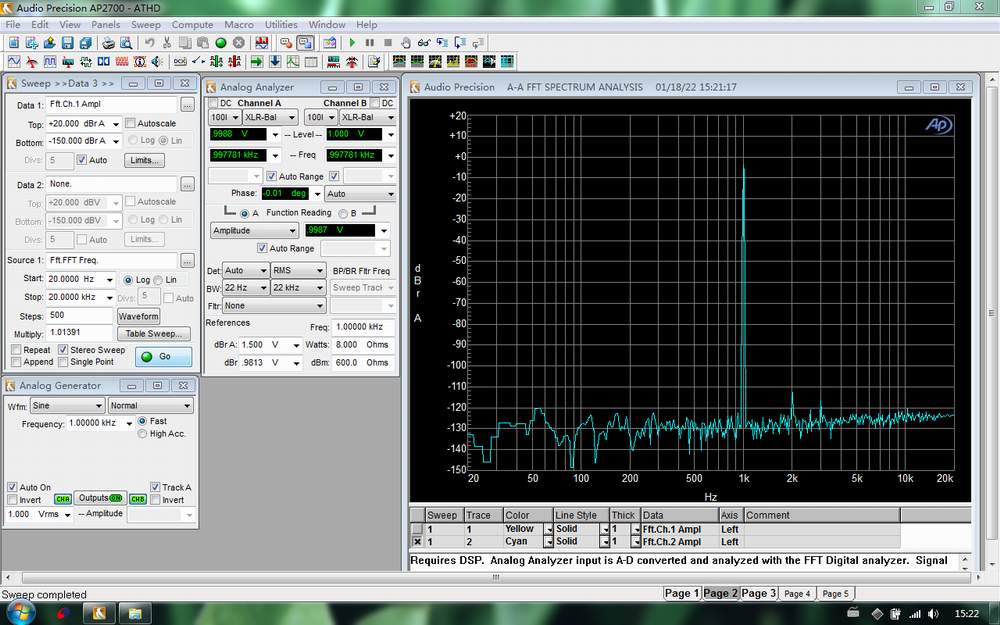

THD
<0.0005 %
THD+N <0.0025%

Frequency Band (XLR input)

20Hz - 100KHz (<4DB )




Volume characteristic

100 steps Supper Exponential Volume Characteristic




Gain

High gain :+16DB
Low gain : +6DB

Output Level (Max)

9.5V @ RCA
 19V @ XLR
6MA @ ACSS

Output Impedance

10 ohm @ XLR
>10M ohm @ ACSS


Input Impedance

94K ohm @ XLR
<5 ohm @ ACSS


Channels cross
< -130DB

Channels imbalance
< 0.01DB

Power Requirement

1 Version  100-120V  AC 50/60 Hz
2 Version  220-240V  AC 50/60 Hz

Power Consumption

35W Class A  @230V or 120V

Transformer Power

145W (3 unit transformers)

Package Weight

Approximately 18KG


Dimensions
W430 X L485 X H123 (MM, Fully aluminium )

Accessories

Power cord  X1
