P-2

Remote Control Preamplifier

5 groups of inputs / 2 groups of outputs

    Applies all audiophile grade components, including DALE resistors, EVOX caps (German brand), custom order NOVER (UK brand) caps, all audiophile grade input & output sockets.

        Digital remote controller system with user defined functions and offers a high precision, no sonic degradation and smooth transition volume adjustment.
        Use of LED display panel instead of the popular VFD display device, as VFD can cause disturbance in audio circuits.
        P-2 adopts upgradable and replaceable module design. And users can choose between 3DB and 10DB gain, and Neutral/soft sound mode with jumpers. (We advise users before choosing these modes, turn off the power and pull off the power cable first.)

         P-2 adopts upgradable and replaceable module design. It also enables a current crosslink between module and mainboard to eliminate any unfavorable effect on the tone quality.

         Ordinary amplifiers usually cannot match the circuit parameters after replacing vacuum tubes or operation amplifiers. P-2, however, has all the modules strictly matched with the circuit parameters. This is a big advantage over the ordinary amplifiers.

         To achieve a better sound quality, P-2 also employs the complex parallel stabilized voltage supply to get a purer power supply, so that a better sound quality is guaranteed.

        All the modules in P-2 have different flavors for audition so that the users can get their favorite sound.

        P-2 has a memory function. It can independently memorize the status of the 5 input channel groups, and maintain them even when the machine is shut down. Unlike machines without a memory function, the input channel and volume do not need to be adjusted every time the machine is operated. This function brings a more convenient and pleasant way for users to enjoy music.

        The input channels of P-2 adopt a separated shielding method. When switching, the idle signal lines which link the equipment and the ground wire are completely disconnected, hence the idle input ports of the equipment are shielded. Because of that, the tone quality will not be affected even when more equipment is connected.

     Choice of power cable appropriate for your country:

    When you place the order for P-2, please let us know the type of power cable you require.


       Specification
       Dimensions:  width 250mm, height 75mm and depth 320mm.
       Price:  USD360 (Default applies the M-7 modules, it is all composed of Discrete transistors)
(Excluding shipping charge)
(Includes one stock power cable, and some Jumpers.)
    Audio-gd exclusive power cable, XLR cables & Canare coaxial cable：

   Cable links    http://www.audio-gd.com/pro/cablesEN.htm

       How to change the settings in P-2:
       With the P-2, the user has a choice of 70 steps and 99 steps of volume control, and you can also choose whether to have volume memory.
1. Choose 70/99 steps volume control:
Step A: Push in the "Debug" switch.

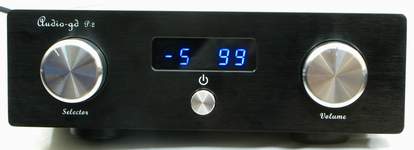

Step B: The display shows as pictures bwlow.
Step C: Turn the volume knob; choose between 70 or 99 step volume control on right.
Step D: Push out the "Debug" switch.
           70 step volume control                      99 step volume control

2. Selecting volume memory:
Step A: Push on the "Debug" switch.
Step B: Turn the selector knob; The display shows as pictures below.
Step C: Turn the volume knob; choose between "ON" or "OF" memory on left.
Step D: Push out the "Debug" switch.
         Volume memory active.                          Volume memory off.
