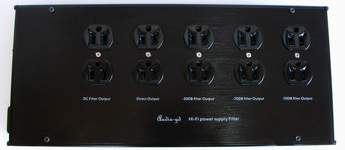

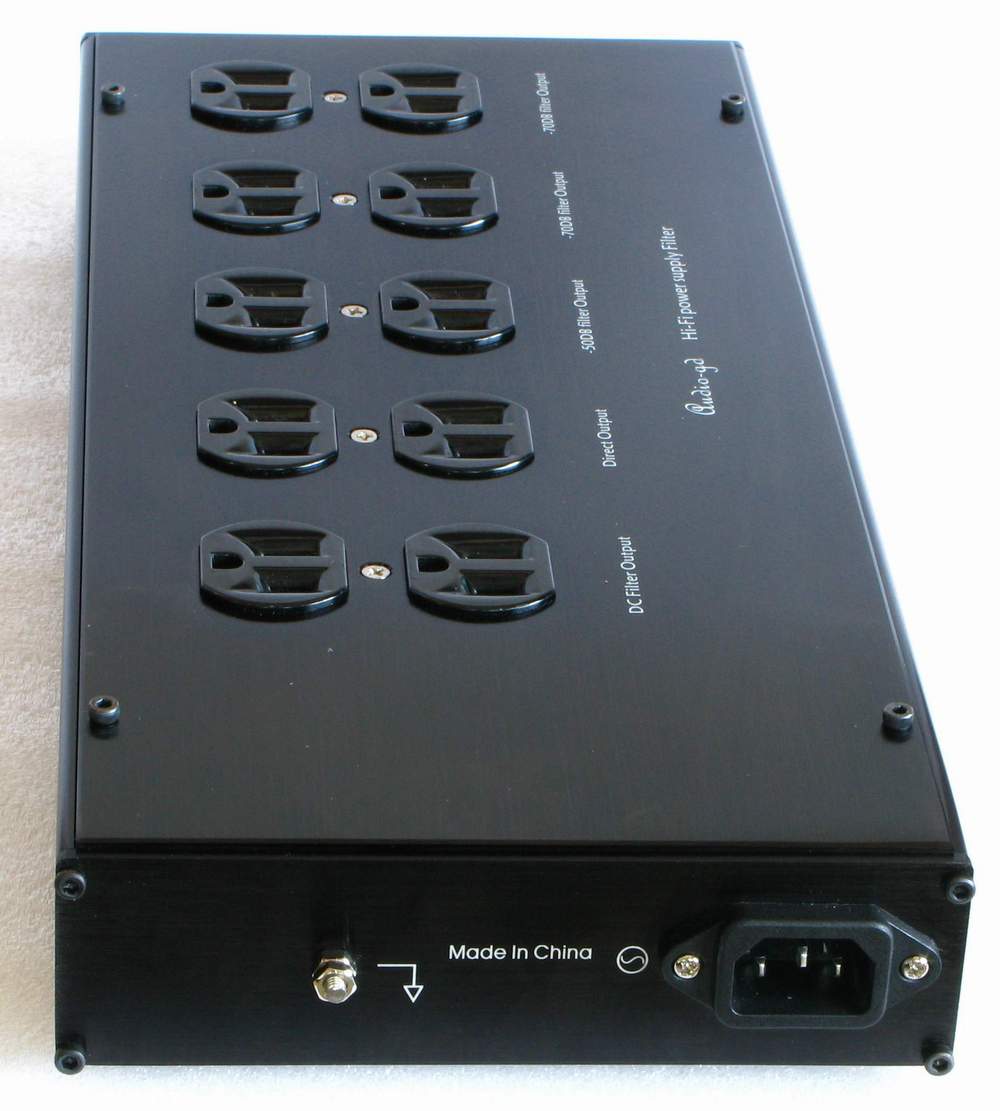

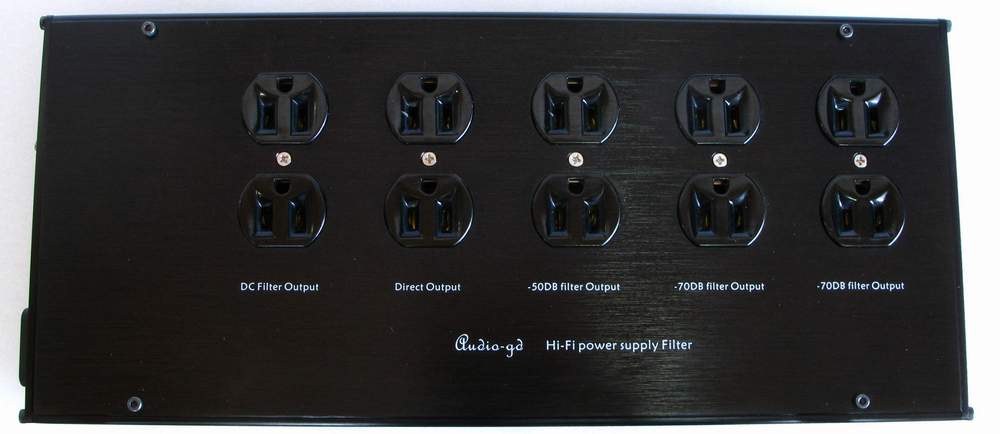

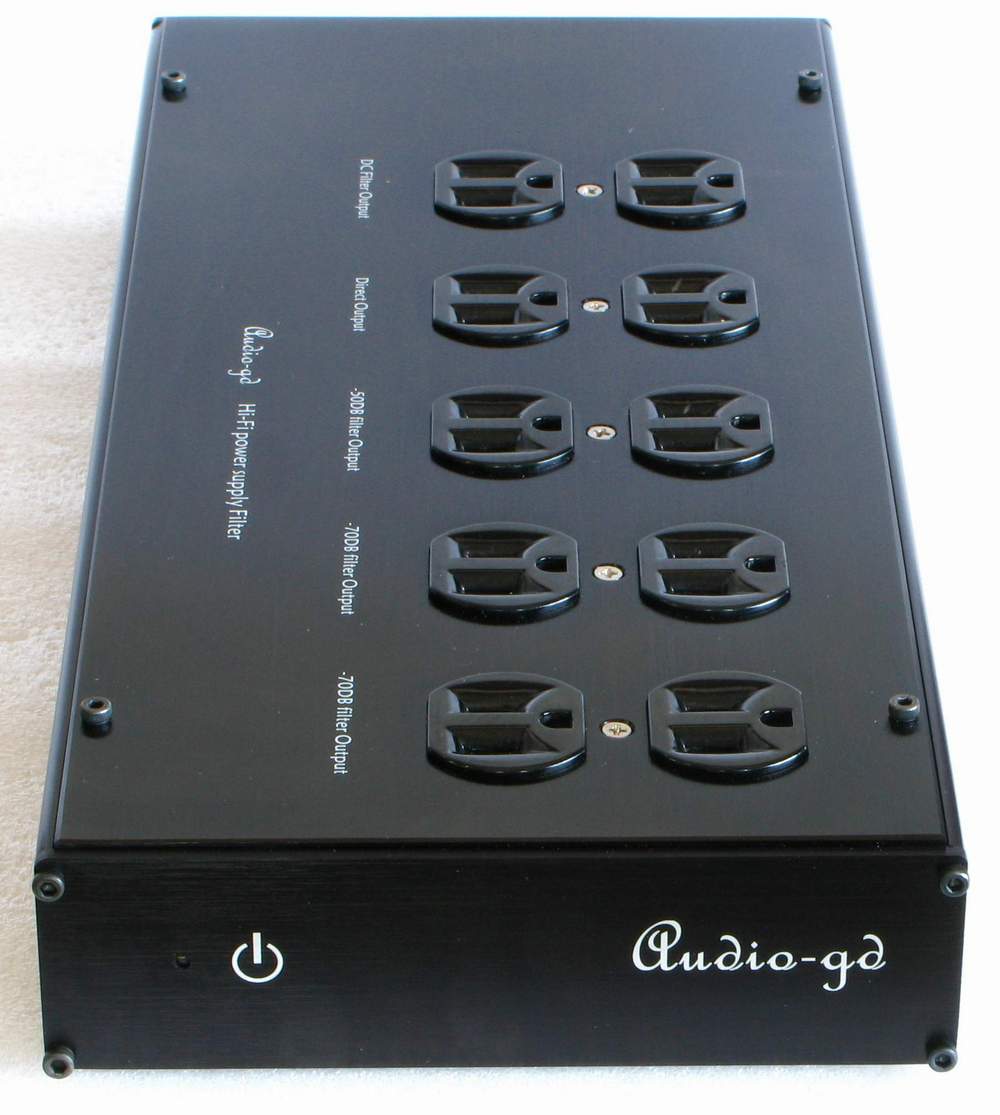

Product Feature: The
power supply filter outlet has three different filter outputs. It uses

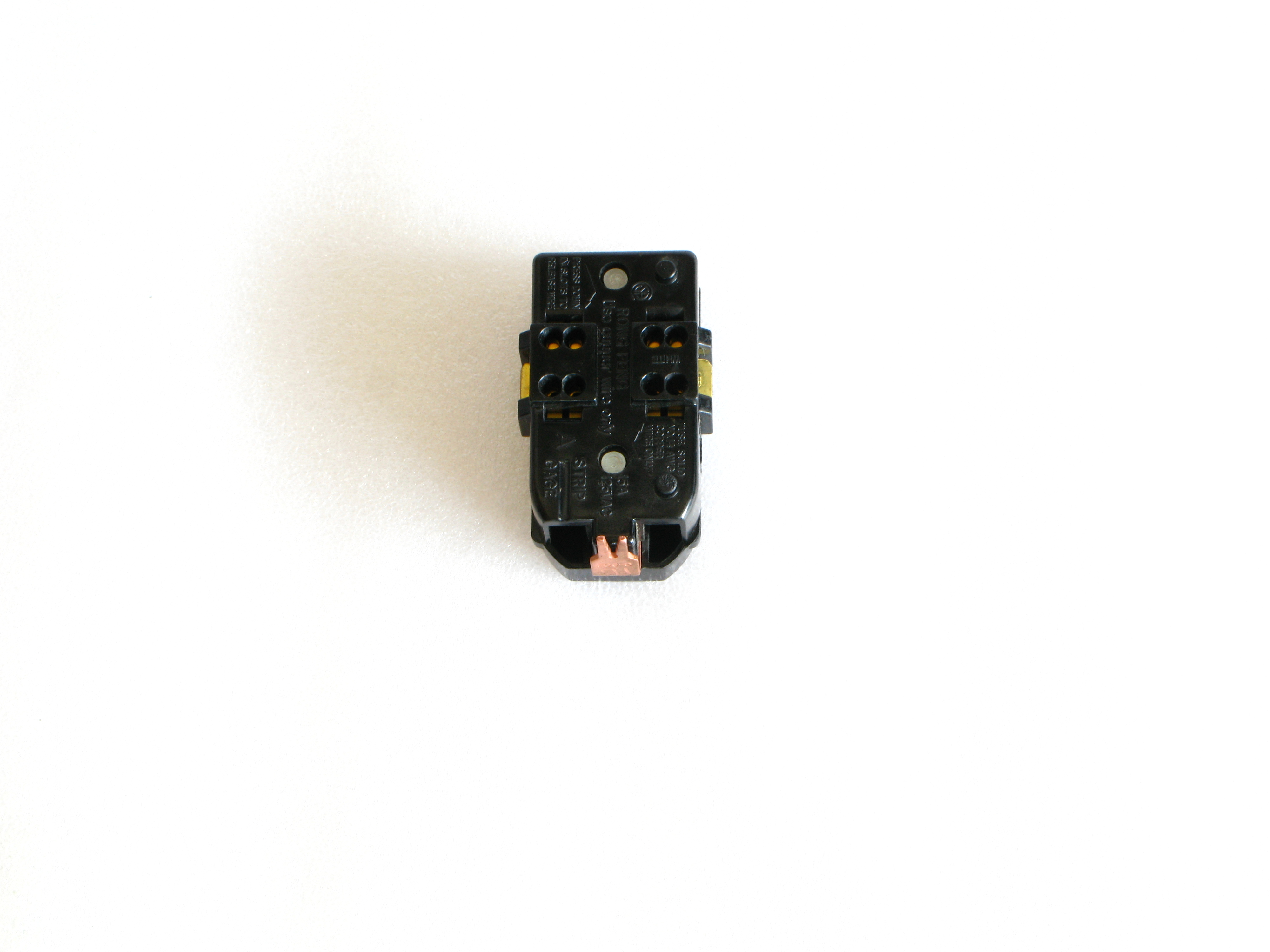

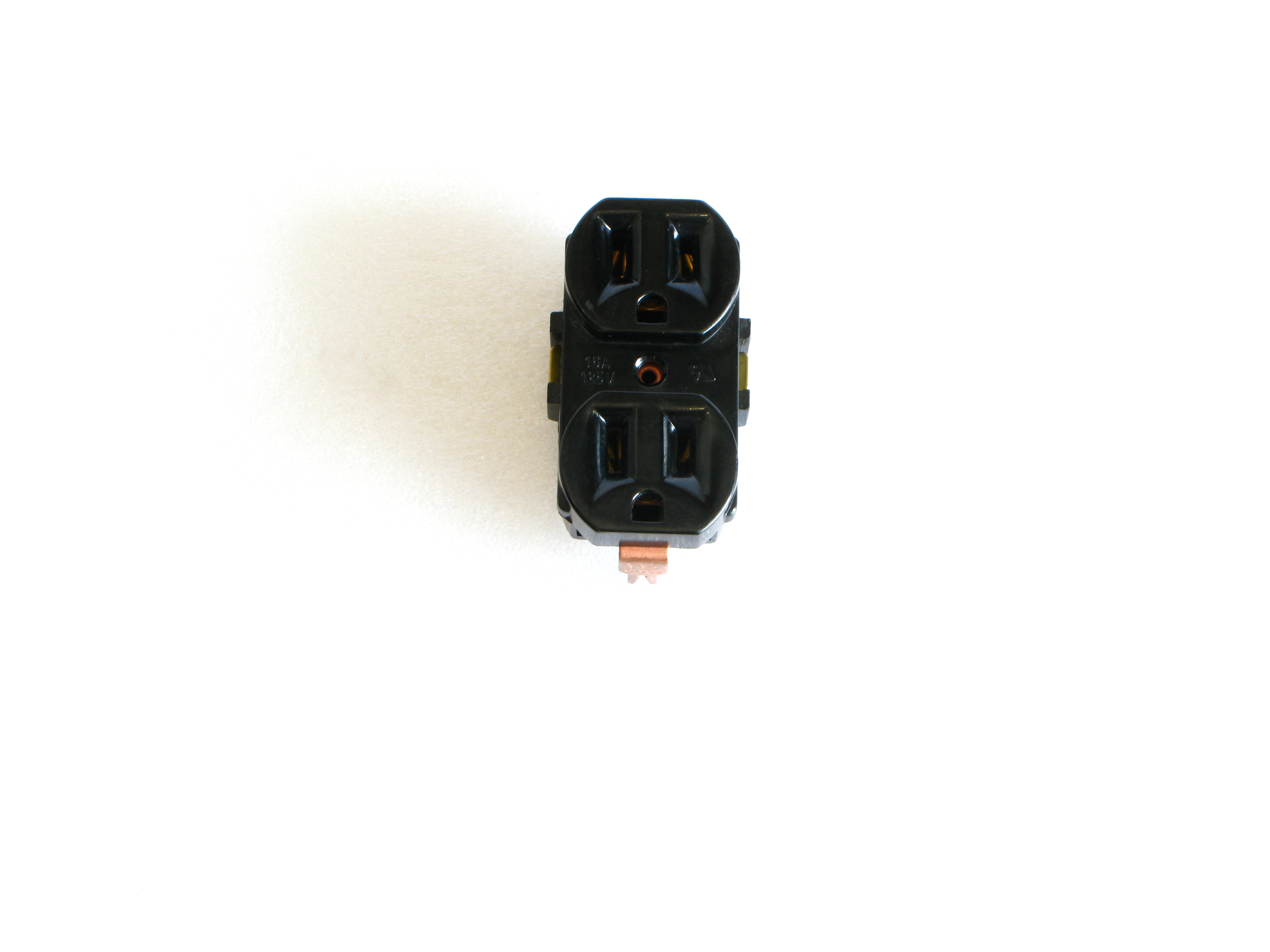

three filter cores and use hi-end parts, like the SOLEN caps, and the
copper outlet sockets.
power outlet filter has no extra functions, it is just filtered
outlets, because I think some protection functions are already built
into customers' wall outlet. Repetitive functions only degrade sound
quality, but customers must make sure their wall outlet has overload
switches for protection. I have been using the same design of filters
more than 7
years and they are safe for electronic gear.
DC voltage goes through the 120/220V lines into the gear, vibrate
the transformers and create the "Hum" or "zzz" noise, using these two
sockets output can reduce the DC voltage component and keep the
transformers more quiet.
Direct Output: These two sockets are
without any filter, some fans think the power amps should be connected
to the power line without any filter for keeping the dynamics intact.
output: These two sockets can offer -50DB noise cut output, can
supply sources and preamps. But I personal like connecting to power amp
in speakers systems.
output: These four sockets can offer -70DB noise cut output, can
supply sources and preamps.
In fact, owners can try the different outputs and compare
which is best for personal sense, there are no set rules.
It can work on 100 to 240VAC, but currently we only offer
with US outlets, because other outlets are not readily available in the
Chinese market. I advise owners not to use stock power cable for it.
Dimension: width 365mm, height 47mm
and depth 160mm.
Accessories: A stock power cable.
